Product Advantages

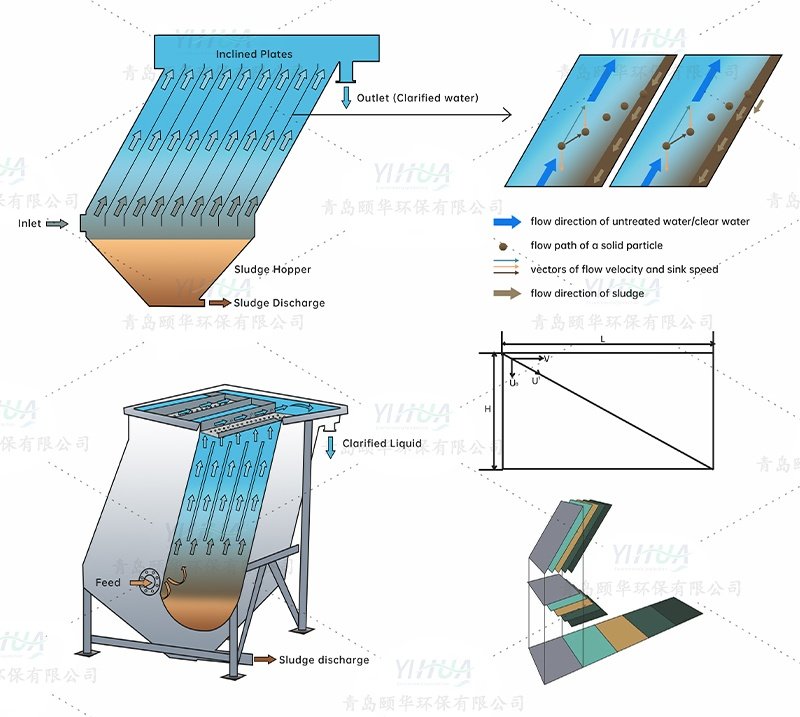

High-efficiency sedimentation and sludge removal: the mud scraper continuously removes the sludge, which promotes rapid and sufficient sedimentation and improves the overall sedimentation efficiency.
Guarantee of high-quality water: Effectively separating sludge and water, reducing suspended solids, and stably guaranteeing excellent water quality.
Convenient sludge treatment: It can be equipped with sludge scraper, and the sludge can be collected to the sludge discharge port, which is convenient for subsequent sludge dewatering and other treatments, and is easy to operate.
Stable Operation Characteristics: Automated operation, fewer faults, strong stability, reducing manual intervention and maintenance costs.
Flexible adaptation to working conditions: different combinations of sedimentation tank and filtration can be flexibly adjusted according to different water quality and quantity, with wide adaptability.
Applications
Hospital Sewage
Electronic Wastewater
Farming Wastewater
Automobile Manufacturing Wastewater
Municipal Wastewater
Hotel Wastewater
Mode1
| Capacity (m³/h) | Dimensions(m) L W H | List of nozzles (dn) Water inlet Water outlet Mud outlet |
YHLC1-001 | 1 | 1.6 | 0.8 | 2 | 25 | 50 | 50 |
YHLC1-003 | 3 | 1.6 | 1.1 | 2 | 50 | 50 | 50 |
YHLC1-005 | 5 | 2.2 | 1.4 | 2.2 | 80 | 80 | 65 |
YHLC1-010 | 10 | 3.2 | 1.8 | 3.5 | 80 | 80 | 80 |
YHLC1-020 | 20 | 3.2 | 2.2 | 3.5 | 100 | 100 | 80 |
YHLC1-030 | 30 | 4.2 | 2.2 | 4.1 | 150 | 150 | 80 |
YHLC1-040 | 40 | 5.3 | 2.2 | 3.5 | 150 | 150 | 80*2 |
YHLC1-050 | 50 | 6.3 | 2.2 | 3.9 | 150 | 200 | 80*2 |
YHLC1-060 | 60 | 7.3 | 2.2 | 3.5 | 200 | 200 | 80*3 |
YHLC1-070 | 70 | 8.8 | 2.2 | 3.9 | 200 | 200 | 80*3 |
YHLC1-080 | 80 | 9.3 | 2.2 | 3.5 | 200 | 200 | 80*4 |
YHLC1-090 | 90 | 10.2 | 2.2 | 4.1 | 200 | 250 | 80*3 |
YHLC1-100 | 100 | 11.3 | 2.2 | 3.9 | 250 | 250 | 80*4 |
YHLC1-120 | 120 | 9.3 | 3.2 | 3.5 | 250 | 250 | 80*4 |
YHLC1-150 | 150 | 11.3 | 3.2 | 3.9 | 250 | 250 | 80*4 |
